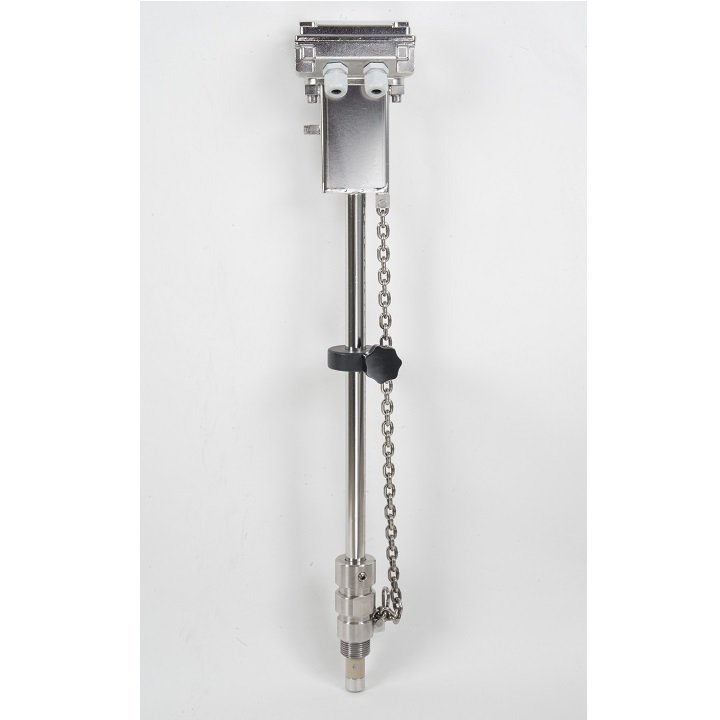

The MS 3810 insertion sensor ISOMAG is used for mounting on pressure lines with diameters from 80 to 8000 mm and it is ideal for temporary measurement campaigns, line monitoring and leak detection.

Wide choice of sensor lengths for installation in pipes of different diameters with the possibility of integrating pressure measurement.
_____________________________________________________________________________________________________________________

TECHNICAL SPECIFICATIONS:

• Nominal pressure: PN 25
  Process connections: Threaded 1”
• Ball valve for extraction under load
• Liquid temperature: from 0 to 100 ° C
• Coating material: PEEK
  Electrode material: AISI316L
• Sensor material: 316 Stainless Steel
• Accuracy: ± 2% of the value read
  (regardless of the coupled converter).
