Ultrasonic Flow Transducer - dBMACH3

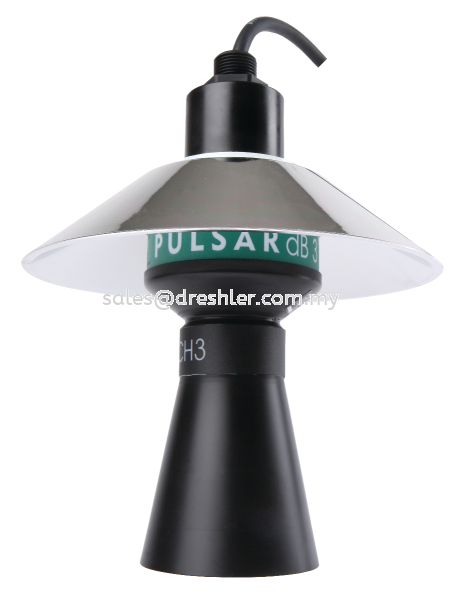

Ultrasonic Transducer - dBMACH3 & dB3 with Double Sun Shields
Non-contacting ultrasonic transducers for flow applications
The dBMACH3 and the dB3 with Double Sun Shield are the same trustworthy dB Transducers our customers know and love. However, these transducers have been specifically designed for flow measurement - with the dBMACH3 being the first ultrasonic transducer with zero effective blanking distance. The dB3 with Double Sun Shields adds some extrasolar radiation protection to the transducer to ensure that the internal temperature can be utilized, ensuring that measurement is as accurate and reliable as possible.
_______________________________________________________________________________________________________________________________________________
TECHNICAL SPECIFICATIONS:
| General Specifications | |
|---|---|
| Spec: | Description: |
| Sensor Body Material | Valox 357 U and syntactic foam face |
| Cable Lengths |
Standard: 5 m, 10 m, 20 m, or 30 m. (16.4 ft, 32.8 ft, 65.6 ft, or 98.4 ft) Optional: up to 150 m (492 ft) maximum; increments of 10 m (32.8 ft) only |
| Maximum Separation | 500 m (1640 ft) |
| Mounting Connection | BSP or 1 in NPT |
| Enclosure Protection | IP68 / NEMA 6P |
| Frequency | 125 kHz |
| Beam Angle | <10° |
